Y series solenoid valve oem series
  • Y series solenoid valve oem series
  • Y series solenoid valve oem series
  • Y series solenoid valve oem series
  • Y series solenoid valve oem series
  • Y series solenoid valve oem series
  • Y series solenoid valve oem series
Solenoid Valve

Y series solenoid valve oem series

Product code
Y series solenoid valve oem series

Manual Switch Valve
The valve has a basic manual control function and is equipped with a brass three-way switch. Users can manually choose between “on, off, and automatic (add other accessories to achieve remote control)”. Switch on and off quickly and effortlessly, even under high-pressure conditions.

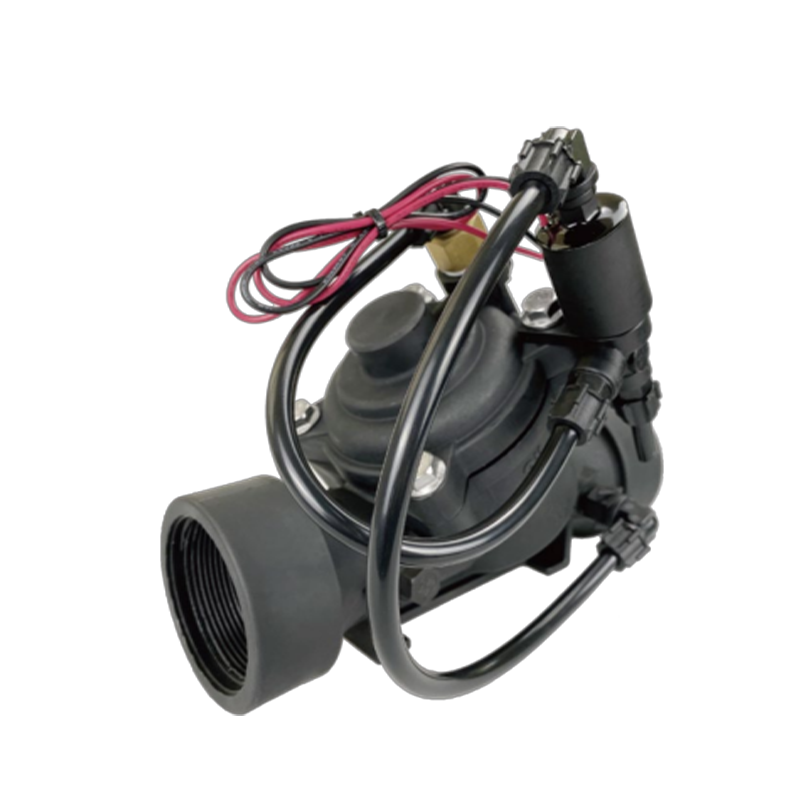

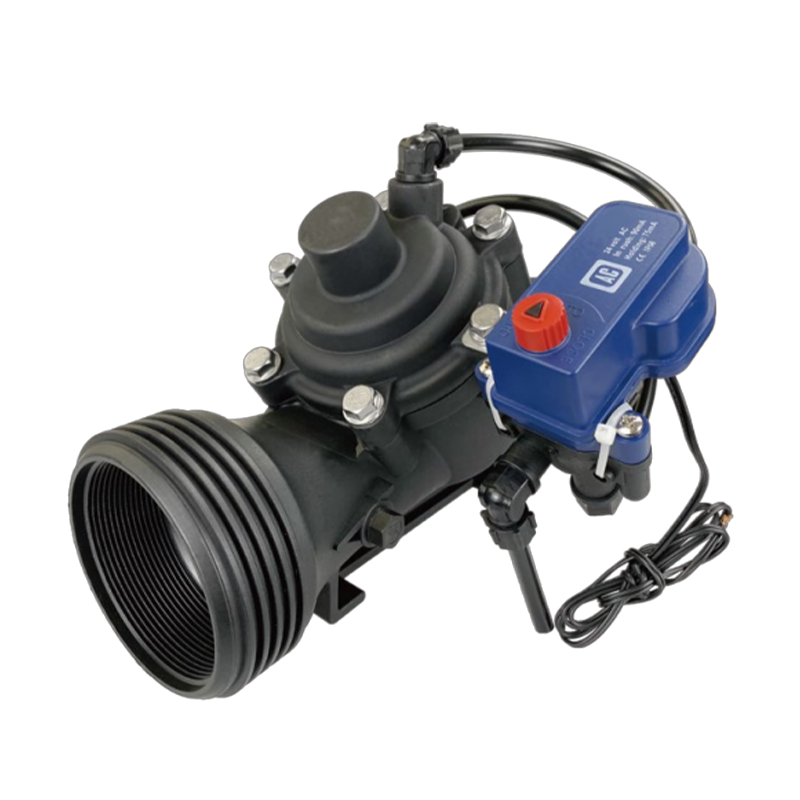

Solenoid Control Valve
A 3-way valve can be controlled by coil solenoid, pulse coil solenoid, and pulse mechanical solenoid. It can also be switched on and off by connecting a decoder. The conventional main valve is "normally closed", (a "normally open" solenoid valve can also be supplied according to the customer's request). It can also be used with other control equipment

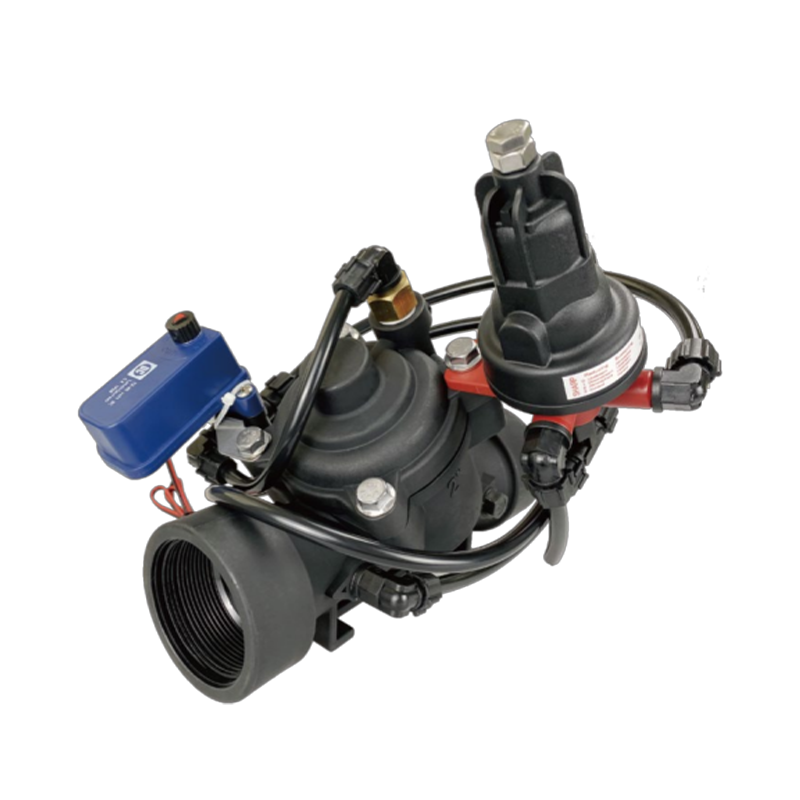

Pressure Relief Valve
The pressure relief valve is a hydraulically driven diaphragm-type hydraulic control valve, which can reduce the high pressure to the low pressure and keep the water pressure behind the valve not greater than the set value and the valve is fully open when the front-end pressure is lower than the set value. By matching with different electromagnetic heads and controllers, the automatic control function can be realized.

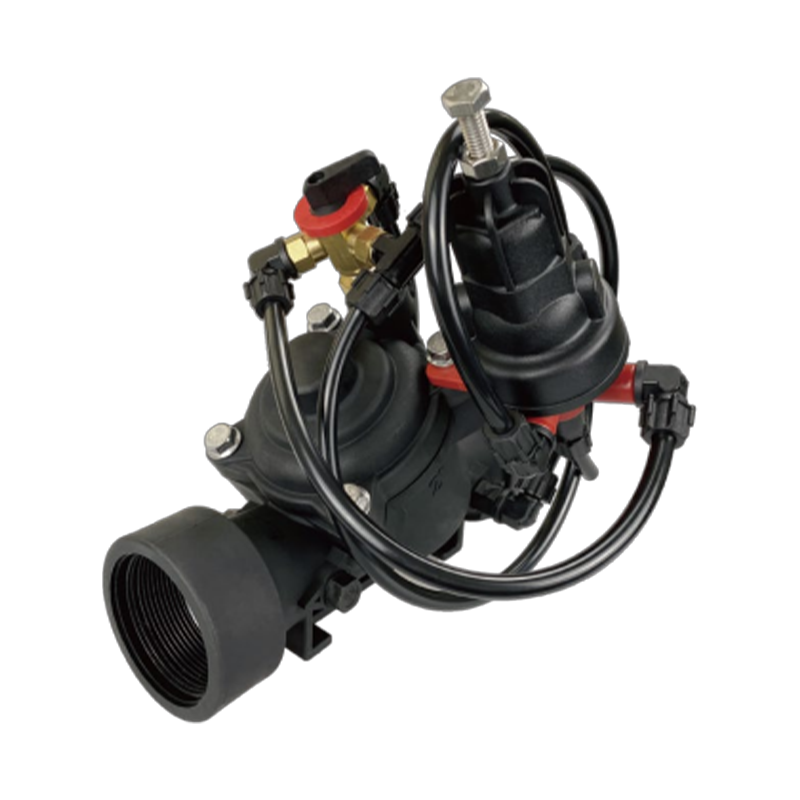

Pressure Holding Valve
The valve maintains the preset inlet pressure and maintains the inlet not lower than the set value through flow regulation. When the front-end pressure exceeds the set value, the overpressure part is discharged through flow adjustment. By matching with different electromagnetic heads and controllers, the automatic control function can be realized.
APPLICATION

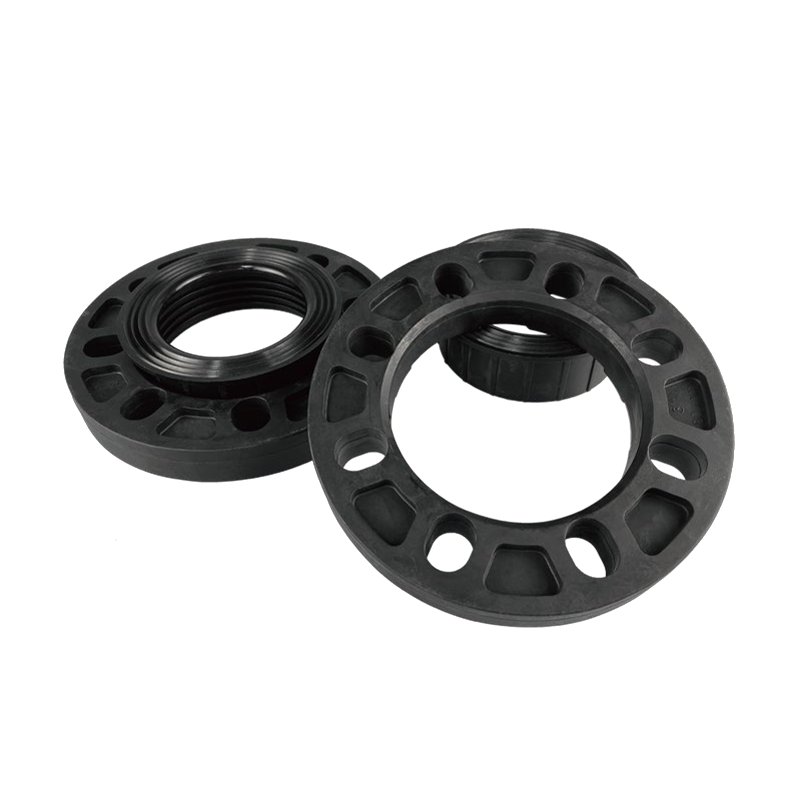

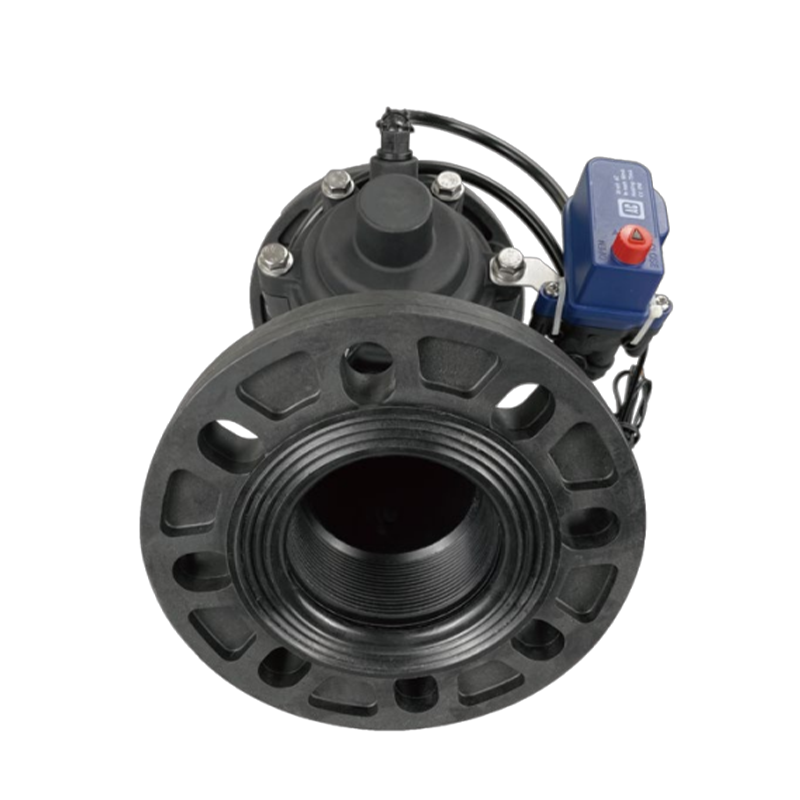

The Y series solenoid valves have full sizes from 2 " to 3", optional connections include flflanges or female thread.
Designed for serving on a wide range of pressure and flflow conditions, from low fellow dripping to ultra-high fellow system.

FEATURE
Pilot-operated diaphragm structure, nylon reinforced.
Double filtration to protect the solenoid core.
Waterproof sealing coil.
Closing slowly to prevent the water hammer.
The flow control handle adjusts the flow rate as needed
The Y-shaped valve body design supports a higher flow rate.
Medium: Water
Temp: Water temp≤53℃; Surrounding Temp≤80℃
Online Inquiry
  • Product Parameters
  • Industry Applications
  • SPECIFICATION
    SOLENOID VALVE OEM SERIES
    Flow  200bm≤60.0m³/h
    300bm≤70.0m³/h
    Pressure  1.0—10.0bar
    Output pressure  0.8—6.5bar
    Port Size  2”，3”
    Orifice  DN50,DN80
    Voltage  AC24V，50—60Hz DC24V/DC12V/DC9V(customization)
    DC Latching
    Material  Valve body—Glass-filled Nylon
    Sealing—NBR/EPDM
    The movable core—430F
    The static core—430F
    Springs—SUS304
    Shading coil—Red Copper
