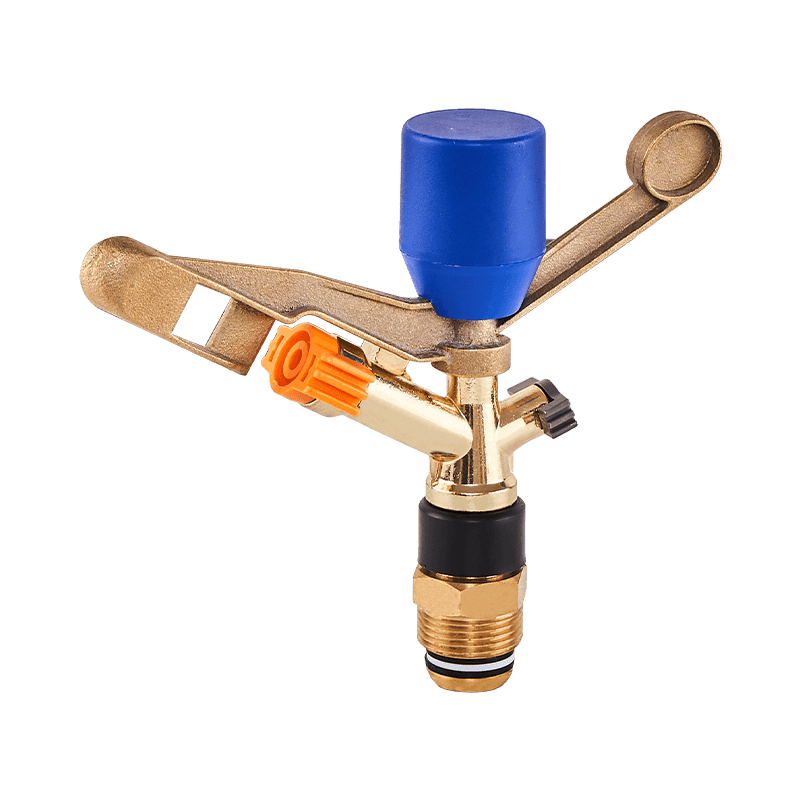

Nozzle specification data sheet | ||
8021 xx xx | ||
Part No. | Nozzle Size | Nozzle Size |
8021 | XX | XX |
Nozzle Size | Inch | MM |
6 | 3/32" | 2.4 |
8 | 1/8" | 3.2 |
9 | 9/64" | 3.6 |
10 | 5/32" | 4 |
11 | 11/64" | 4.3 |
12 | 3/16" | 4.8 |
13 | 13/64" | 5.2 |
14 | 7/32" | 5.6 |
PG | PLUG | PLUG |
Item# | Qty/ctn | N.W./ctn | G.W./ctn | LxWxH (cm) | m³ |
ZM8021 | 50 | 17.5Kgs | 19.2Kgs | 53x36x19 | 0.36 |
Performance data | 3.5x2.5mm Blue | 4.5x2.5mm Black | 45x2.5mm Brown | 5.0x2.5mm Purple | 5.5x2.5mm Orange | |||||||||||
Nozzle Size | mm | |||||||||||||||
Pre. | kg/cm2 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 |
Flow Rate | m³/h | 0.18 | 0.93 | 1.02 | 1.06 | 1.22 | 1.35 | 1.29 | 1.5 | 1.65 | 1.6 | 1.85 | 2.1 | 1.99 | 2.25 | 2.5 |
Rad. | m | 1.16 | 1.33 | 1.47 | 1.41 | 1.62 | 1.8 | 1.64 | 1.9 | 2.1 | 1.95 | 2.25 | 2.55 | 2.3 | 2.65 | 2.95 |
13.25 | 13.75 | 14 | 14 | 14.5 | 14.75 | 14.25 | 15 | 16.5 | 15 | 16.75 | 17 | 16 | 17.25 | 18 |
Performance data | 6.0x2.5mm Red | 6.5x2.5mm Grey | 6.5x3.2mm Grey | 7.0x2.5mm Green | 7.0x3.2mm Green | |||||||||||
Nozzle Size | mm | |||||||||||||||
Pre. | kg/cm2 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 |
Flow Rate | m³/h | 2.3 | 2.7 | 3 | 2.7 | 3.1 | 3.5 | 2.7 | 3.1 | 3.5 | 3.3 | 3.5 | 3.9 | 3.3 | 3.5 | 3.9 |
Rad. | m | 2.65 | 3.1 | 3.45 | 3 | 3.45 | 3.85 | 3 | 3.45 | 3.85 | 3.4 | 3.9 | 4.35 | 3.4 | 3.9 | 4.35 |
16.5 | 17.75 | 18 | 17 | 18 | 19 | 17 | 18 | 19 | 17 | 17.5 | 18 | 17 | 17.5 | 18 |
