T-type
Solenoid Valve

T-type


Product code

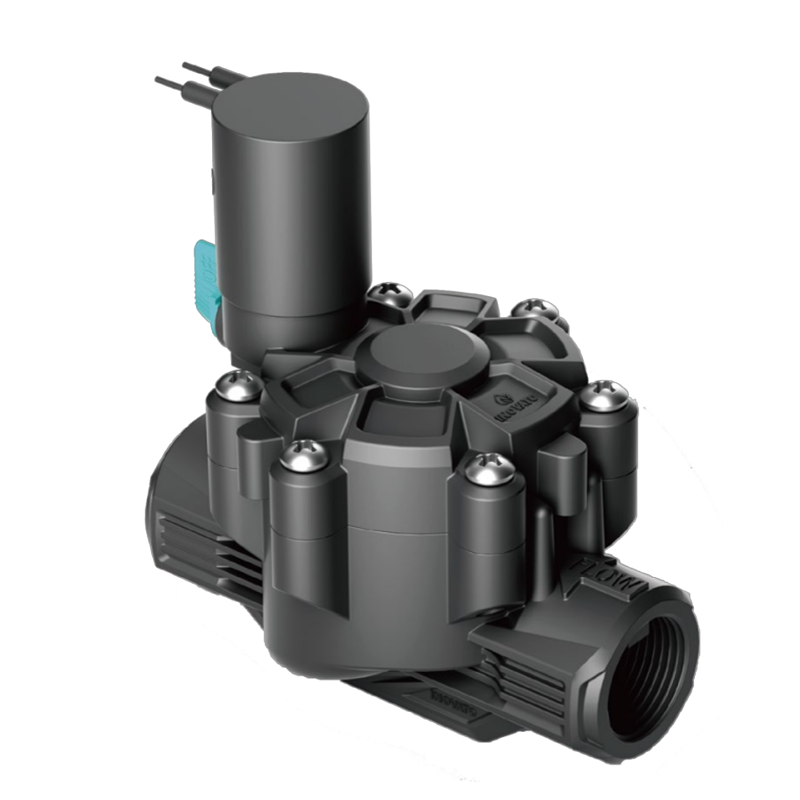

INOVATO T SERIES SOLENOID VALVE

APPLICATION
The T Series are widely used in large-area lawn irrigation system,
such as large park irrigation, road greening, golf course, also used
in agriculture irrigation and industrial dedusting
FEATURE
Pilot-operated diaphragm structure, nylon reinforced.
Double filtration to protect the solenoid core.
Waterproof sealing coil.
Closing slowly to prevent the water hammer.
Manually on/off the valve by turning the coil.
The flow control handle adjusts the flow rate as needed.
Medium: Water
Temp: Water temp≤53℃; Surrounding Temp≤80℃
Online Inquiry
  • Product Parameters
  • Industry Applications

  • SPECIFICATION
    Flow ½”≤3m³/h,¾”≤9m³/h
    1”≤9m³/h,1½”≤21m³/h
    2”≤34m³/h
    Pressure 1.0—10.0Bar
    Port thread Female G BSP
    Port Size ½”,¾”,1”,1½”,2”
    Orifice DN15,DN20,DN25,DN40,DN50
    Voltage AC220V/AC110V/AC24V,50—60HZ
    DC24V/DC12V/DC9V(customization)
    DC Latching
    Material Valve body—Glass-filled Nylon
    Sealing—NBR/EPDM
    The movable core—430F
    The static core—430F
    Springs—SUS304
    Shading coil—Red CopperT
