HF02-04

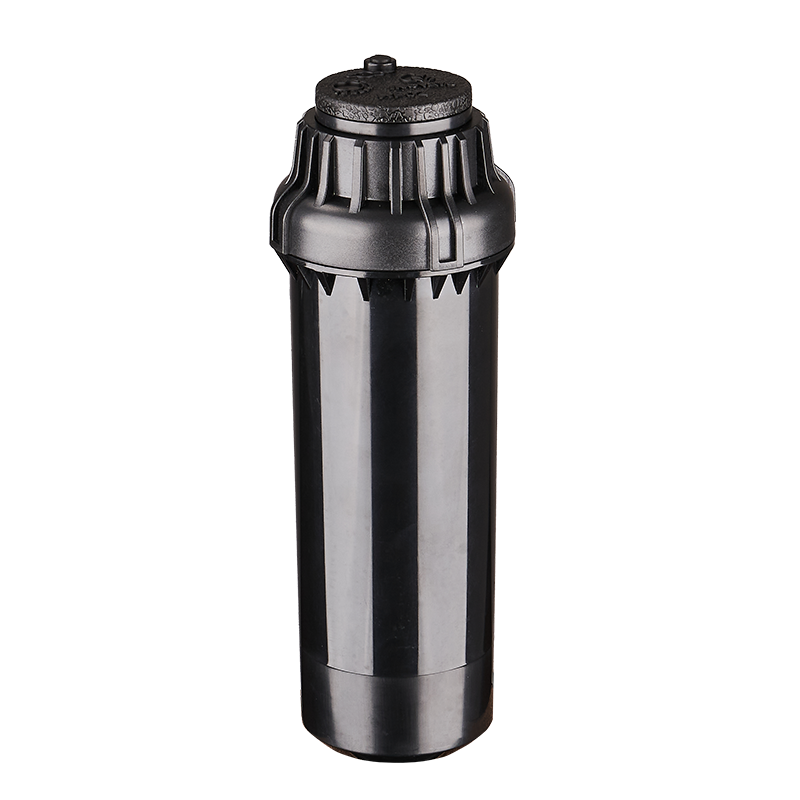

Gear Drive Sprinkler

HF02-04

The highly durable HF02-04 offers all the benefits of a large gear drive sprinkler in a compact, spray-sized package, with water-efficient nozzles and easy arc adjustment.


Radius 17' to 46' (4.9 to 14 m)
Flow 0.07 to 3.23 M3
Inlet Size ¾"

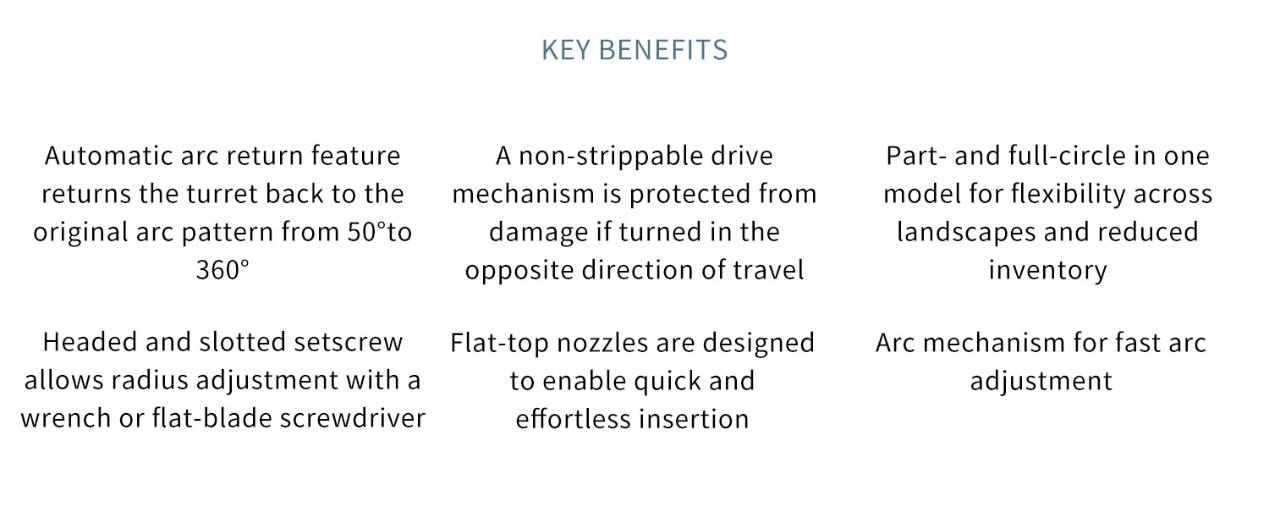

  • Automatic arc return: Returns to the original arc regardless of where the turret is turned
  • Patented non-reversing 360º for part- and full-circle in one model, from 50º to 360º

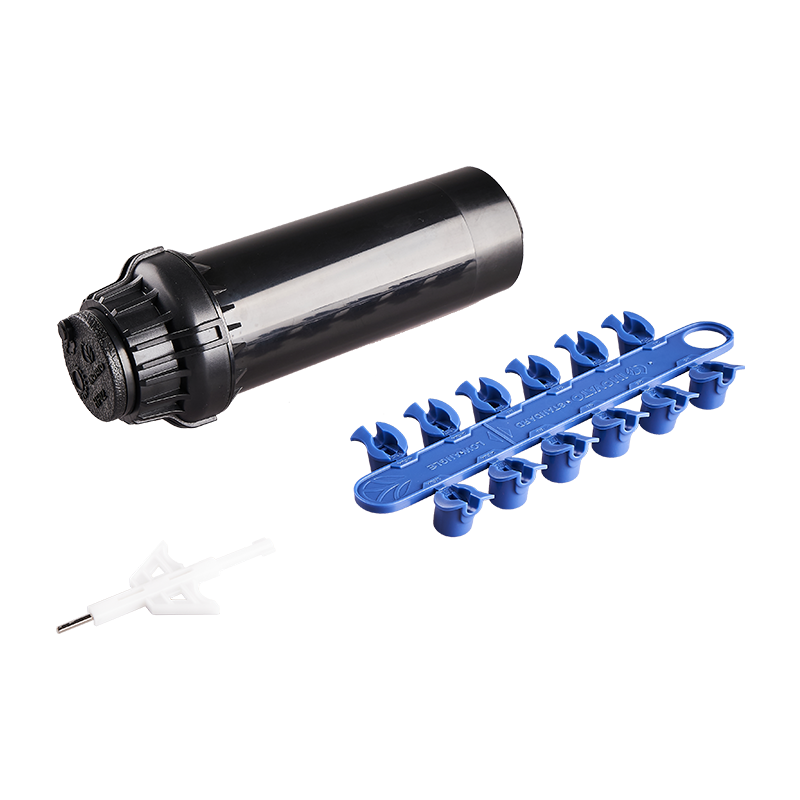

  • Includes an easy–to–install, square top rack of 8 standard nozzles
  • Optional racks of 4 short-range nozzles for smaller areas are also available

SPECIFICATIONS
Operating Specifications

  • Nozzle choices: 12
  • Radius: 17' to 46' (4.9 to 14 m)
  • Flow: 0.07 to 3.23 M3
  • Recommended pressure range: 1.7 to 4.5 bar
  • Operating pressure range: 1.4 to 7 bar
  • Precipitation rate: 10 mm/hr approximately
  • Nozzle trajectory: standard = 25°, low-angle = 13°
  • Warranty period: 5 years

Factory-Installed Options

  • Drain check valve
  • Reclaimed water ID
  • Blue #1.5–4.0 nozzles
Online Inquiry
  • Product Parameters
  • Industry Applications

  • Operating Specifications
    Radius 4.9~14.0m
    Flow 0.07~3.23m3/hr;1.2~53.8l/min
    Recommended working pressure 1.7~4.5bar; 170~450kPa
    Operating working pressure 1.4~7bar; 140~700kPa
